BH1750 Ambient Light Sensor IC Series[Video]:Datasheet, Features, and Applications

The BH1750 is a digital Ambient Light Sensor IC that connects to the I2C bus. This IC is the best for obtaining ambient light data in order to regulate the LCD and keypad backlight power of a mobile phone. At high resolution, a wide range can be detected. It is a digital Ambient Light Sensor IC with an I2C bus interface. This IC is the best for obtaining ambient light data in order to regulate the LCD and keypad backlight power of a mobile phone. At high resolution, a wide range can be detected.

• Power Supply: 2.4V-3.6V (typically 3.0V)

• Less current consumption: 0.12mA

• Measuring Rang: 1-65535lx

• Communication: I2C bus

• Accuracy: +/-20%

• Built-in A/D converter for converting analog illuminance into digital data.

• Very small effect of IR radiation

• Highly responsive near to the human eye.

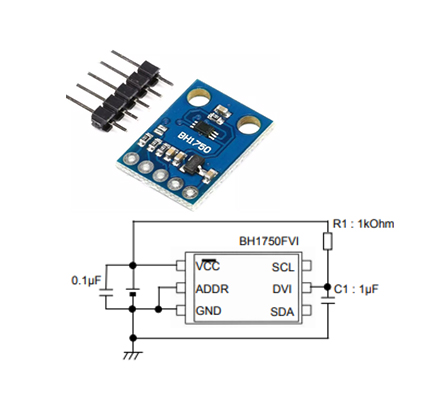

BH1750 Pinout

DFRobot SEN0097 technical specifications, attributes, parameters and parts with similar specifications to DFRobot SEN0097.

The BH1750 is a light intensity sensor that may be used to regulate the brightness of LCD screens and mobile phones. It can also be used to turn on/off automobile headlights based on the lighting outside. Because the sensor communicates with microcontrollers using the I2C protocol, it's quite simple to use. I2C is supported by the SCL and SDA pins. The LUX value is directly provided by the sensor, therefore no calculations are required to determine it. In fact, it determines the intensity by the amount of light that strikes it. It functions between 2.4 and 3.6 volts and draws only 0.12 milliamperes. The sensor's output is unaffected by the light source used or the influence of the light source.

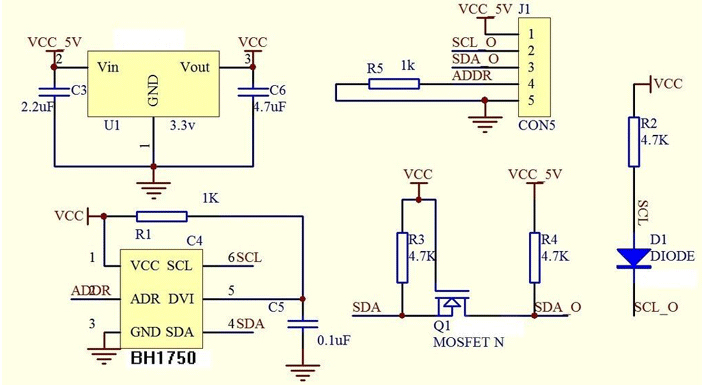

The BH1750's hardware is fairly basic. The BH1750FVI IC is the key component. A voltage regulator is necessary because the module operates at 3.3V. A 4.7K pull-up resistor is utilized for I2C lines.

The lux readings are obtained from the BH1750 via the I2C bus. The analog illuminance is converted to a digital lux value by the ADC in the IC. With the help of I2C pins SCL and SDA, this data is now sent to the microcontroller. The clock pulse is provided by the SCL, while the lux value is transferred by the SDA. The IC employs a photodiode to produce a reaction that is comparable to that of the human eye. There is also an internal oscillator in the IC which is used for the clock of the internal logic of the IC.

1) Illuminance to Digital Converter

2) Wide range and High resolution. ( 1 - 65535 lx )

3) Low Current by power down function

4) 50Hz / 60Hz Light noise reject-function

5) I2C bus Interface ( f / s Mode Support )

6) No need for any external parts

7) It is possible to select 2 types of I2C slave addresses.

8) It is possible to detect min. 0.11 lx, max. 100000 lx by using this function.

• Manipulate brightness in mobile phones/LCD

• Automobile Headlights on/off control based on surrounding lighting conditions.

• Used as Ambient light sensors to control the brightness of Display screens.
